LA
PDF Downloads
LA CATALOG LA INSTALLATION

CAD Downloads
LA 3D

General Information

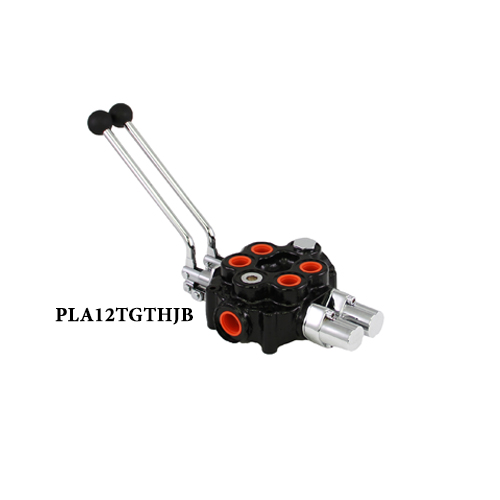

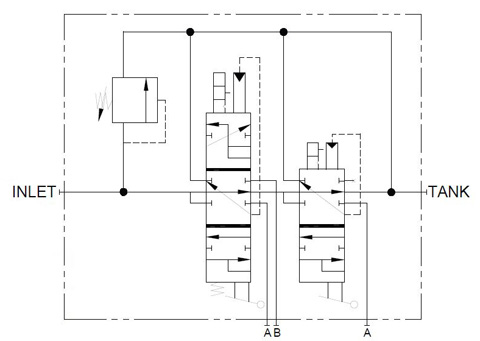

The Brand auto-cycle valve will cycle a double acting cylinder from retracted to fully extended and then back to fully retracted using two spools. The first spool can be used to manually extend and retract cylinder while the second spool only retracts the cylinder. Pushing both levers forward starts the autocycle process. The first hydraulic detent can be adjusted up to 2000 PSI (103 bar) and the second detent should always be set 500 PSI (34 bar) above the first detent setting. The valve is also field convertible to closed center and power beyond.
