B 45 and 120 GPM

General Information

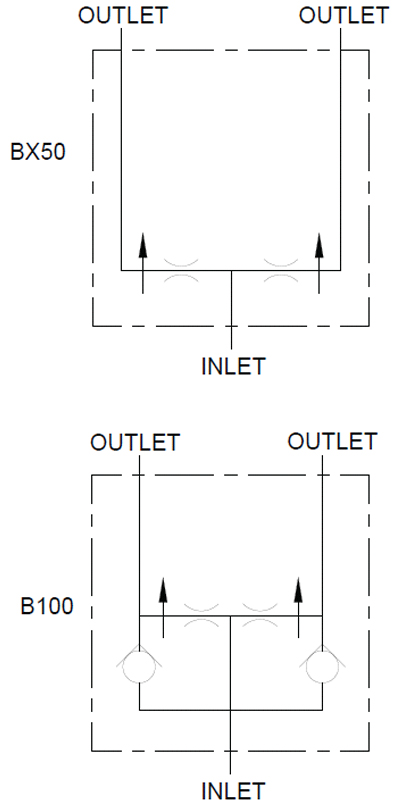

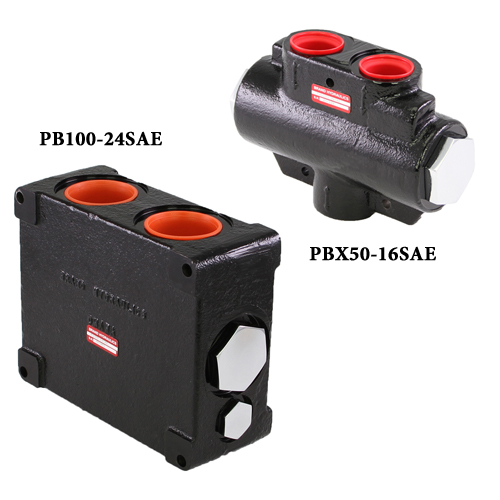

The Brand, non-adjustable, proportional flow divider comes in two basic models BX50, and B100. The B series receives a single stream of fluid and divides it into two output streams. The ratio of division to the two outlets will remain constant even though the work being done by one of the streams is much greater than the work being done by the other. The ratio of the outlet flows, remains constant even when the input flow increases or decreases. The ratio of the outlet flows may be varied from equal flow (50:50) all the way up to an 85:15 ratio.

PDF Downloads
B CATALOG BX50 INSTALLATION B100 INSTALLATION

CAD Downloads
BX50-16 3D B100-24 3D
