FG
PDF Downloads
FG CATALOG FG INSTALLATION

CAD Downloads
FG 3D

General Information

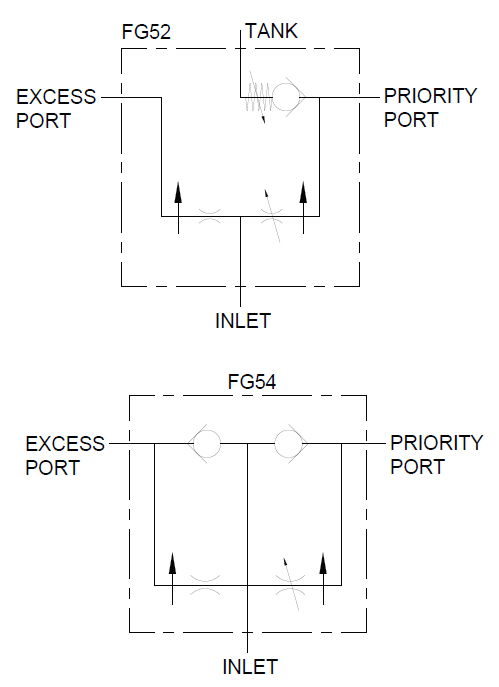

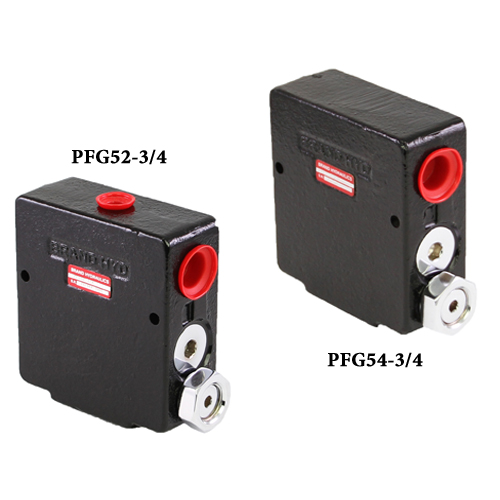

The Brand, adjustable priority flow divider comes in two basic models FG52 and FG54. The FG series receives a single stream of fluid and divides it into two separate output streams. The priority flow is adjustable from 0.2 to 12 gpm (.8 to 45.4 lpm) with minimal pressure drop. The priority port will maintain the same flow setting even with an increase or decrease in the input flow.
