PC
PDF Downloads
PC CATALOG PC INSTALLATION

CAD Downloads
PC6 3D PC37 3D

General Information

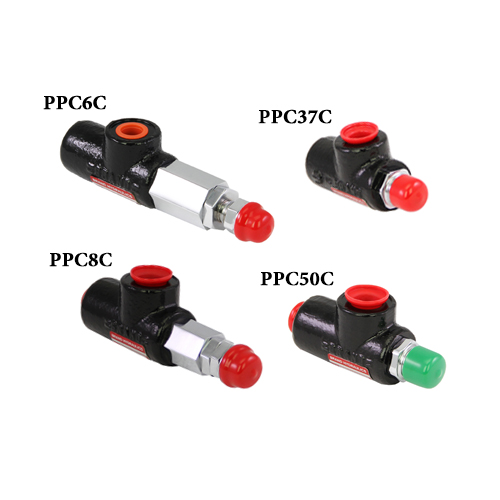

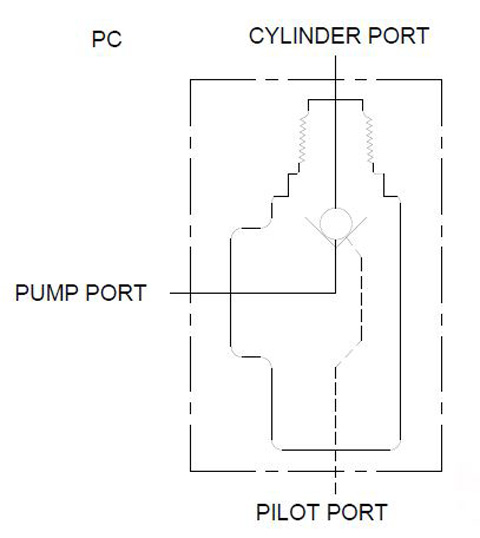

The Brand, pilot check valve is precision built, dependable and low priced. In one direction oil opens a check valve and passes through the valve and into a cylinder. As the check valve closes the oil is positively trapped in the cylinder with a check ball valve. Applying pilot pressure to the pilot port of this valve moves a piston stem against the ball to push the check ball off its seat thus allowing the oil to leave the cylinder. The PC is intended to be a positive safety check, it is not intended to be a metering or counter balance valve. The pilot piston ratio is 3.2 to 1 (PC37C and PC6C) and 4.0 to 1 (PC50C and PC8C), this means that it only requires 0.312 and 0.25 as much pressure on the pilot piston as is being trapped in the cylinder by the check ball.
